CueServer 2 provides up to two serial ports, one RS-232 port and optionally one RS-485 port. These ports are designed to be used to interface with 3rd party devices such as video projectors, automation systems, security panels, motorized window coverings, and most anything else that has either an RS-232 or RS-485 serial interface.
Each serial port can be programmed to output strings of ASCII and/or binary data via CueScript actions and/or rules. Each serial port can be configured to receive and execute CueScript commands or to work with CueStation Hub protocol. Triggering on custom input strings has not been implemented yet.
Specifications
| CS-900 | CS-920 | CS-940/950 | |
|---|---|---|---|
| RS-232 Ports | 1 | 1 | 1 |
| RS-485 Ports | 1 | – | 1 |
| Connector | 2× 5-Position Pluggable Terminal Blocks | 8-Position Pluggable Terminal Block (shared with other I/O) |
2× 12-Position Pluggable Terminal Blocks (shared with contact closures and digital outputs) |
 |
 |
 |
|
| Pinout | Top Row 1 = RS-485 Common 2 = RS-485 “A” 3 = RS-485 “B” 4 = Ground 5 = V+ Bottom Row 1 = RS-232 Common 2 = RS-232 Transmit 3 = RS-232 Receive 4 = Aux Transmit (Do Not Use) 5 = Aux Receive (Do Not Use) |

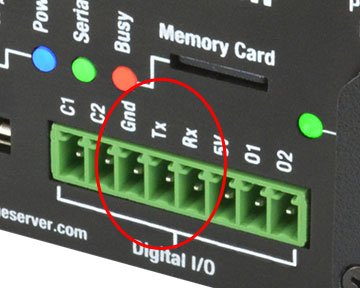

1 = Contact 1 2 = Contact 2 3 = Common (Ground) 4 = RS-232 Transmit 5 = RS-232 Receive 6 = Aux +5VDC Output 7 = Output 1 8 = Output 2 |
Contact Closure Terminals 1-9 = Contact Closures 10 = RS-232 Common 11 = RS-232 Transmit 12 = RS-232 Receive Digital Output Terminals 1 = RS-485 “A” 2 = RS-485 “B” 3 = RS-485 Common 4-12 = Digital Outputs |
Indicators
| Color & Pattern | Description |
|---|---|
 Off |
No serial data input or output |
 Quickly Flashing Green |
Transmitting and/or receiving data |
 Quickly Flashing Yellow |
Received unexpected data (possibly bad protocol) |
 Quickly Flashing Red |
Received poorly framed data bytes (possibly wrong baud rate, or breaks in data) |
