CueServer offers the ability to trigger actions based on internal or external SMPTE Timecode.
Timecode events are configured using the Timecode section of the TRIGGERS group within CueServer Studio.

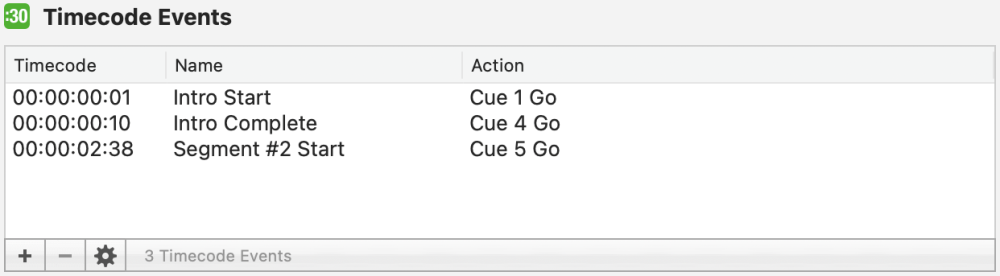

When chosen, the top of the editor panel will show the Timecode events listing:
Each column of the list is described below:
- Timecode – The timecode of the event.
- Name – The name given to each event.
- Action – The action that fires at that timecode.
The
and
buttons at the bottom of the list will add a new event, or remove a selected event.
The
button displays a menu of options, including:
- Duplicate Timecode Event… – Used to make a copy of an existing timecode event.
- Refresh – Used to reload the list of timecode events.

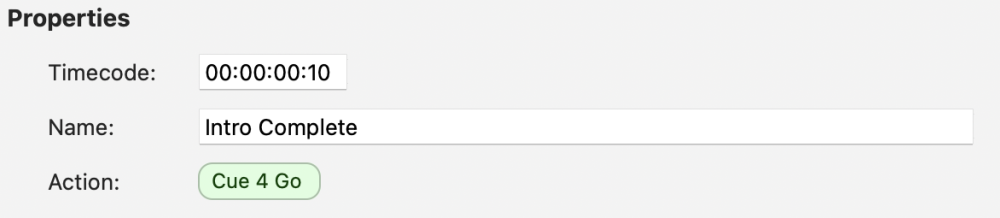

Properties
When creating or editing a selected timecode event, three fields will appear in the properties pane below the list.
Click on the action bubble (
) to add the CueScript to be executed at the selected timecode.
