All models of CueServer 2 can be powered by a 12 to 24 VDC Class 2 input.

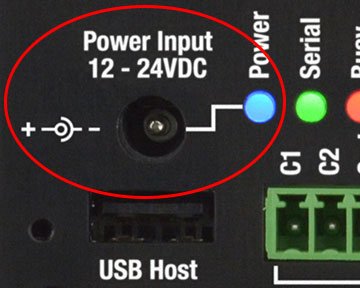

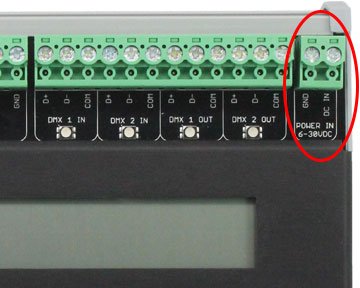

Although the power requirements are similar for the various models, their connectors and current requirements are different. The rack-mounted CS-900 and the miniature CS-920 both have a standard DC power input jack. The surface-mounted CS-940/950 uses screw terminals that are suitable for hardwire connections to DC power.
Specifications
| CS-900 | CS-920 | CS-940/950 | |
|---|---|---|---|
| Power Input | 12-24 VDC | 12-24 VDC | 12-24 VDC |
| Minimum Power Supply Wattage | 9 Watts | 7 Watts | 8 Watts |
| Connector | 2.1mm DC Power Jack | 2.1mm DC Power Jack | Screw Terminals |
 |
 |
 |
|
| Pinout | Center = DC Input (V+) Barrel = Ground |
Center = DC Input (V+) Barrel = Ground |
1 = DC Input (V+) 2 = Ground |
Indicators
| Color & Pattern | Description |
|---|---|
 Solid Blue |
Power is on, all systems normal |
 Slowly Flashing Blue |
Device is in the process of starting up |

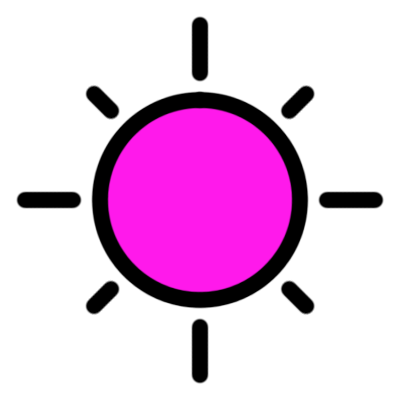

 Slowly Flashing Magenta |
Device is in Bootloader Mode (contact Technical Support) |

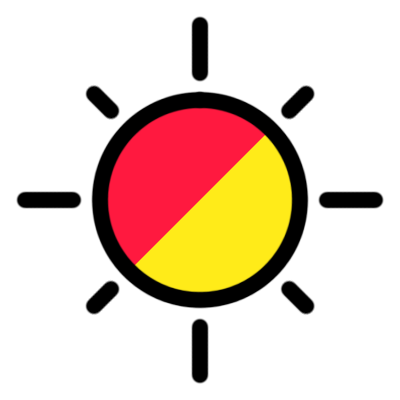

 Slowly Alternating Red/Yellow |
Device is writing firmware or boot information (do not unplug) |

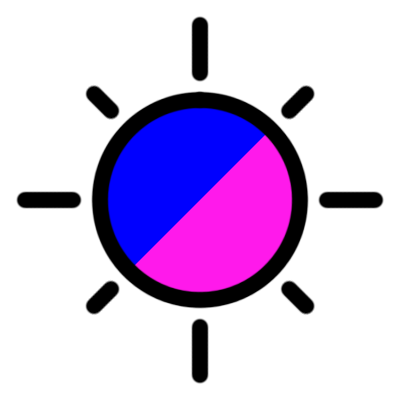

 Slowly Alternating Blue/Magenta |
The System Log has a new message |

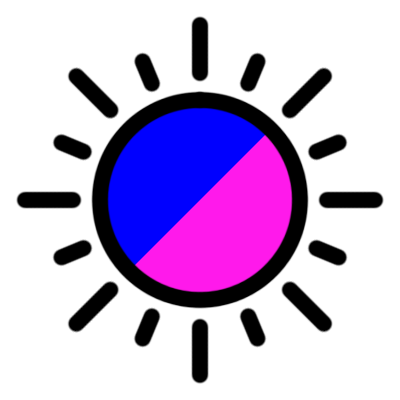

 Quickly Alternating Blue/Magenta |
The System Log has an important new message |

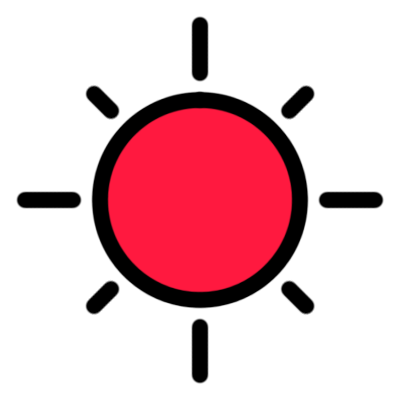

 Slowly Flashing Red |
Device has shut down (must power cycle to reboot) |
 Off |
Device has no power |
