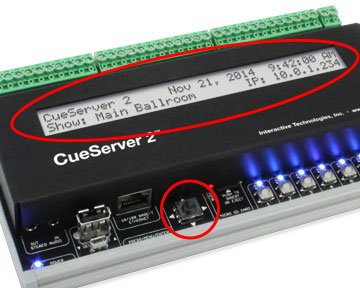

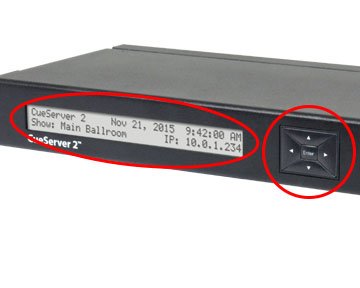

Some CueServer 2 models have a front-panel LCD Display with navigation buttons. This display is used to see the overall operational status of the device and can be used to adjust a small subset of settings and perform basic diagnostics.
The LCD Display features include:
- System Status (Default)
- Main Menu
- Execute Macros
- Change the Active Show
- Adjust the Clock
- Adjust Network Settings
- View DMX Channels
- Display System Information
- Perform a Self Test
See the LCD Display Modes section for a complete description of the LCD functions available.
Specifications
| CS-900 | CS-920 | CS-940/950 | |
|---|---|---|---|
| LCD Display | 2-Line x 40 Character Black on White |
n/a | 2-Line x 40 Character Black on White |
| Navigation | 5-Way Backlit Button Pad | n/a | 5-Way Micro Joystick |
 |
 |
 |
