In addition to being able to transmit and receive DMX-over-Ethernet, CueServer also has built-in DMX ports for hard-wired DMX connections to fixtures, dimmers, consoles and virtually any other DMX compatible devices.

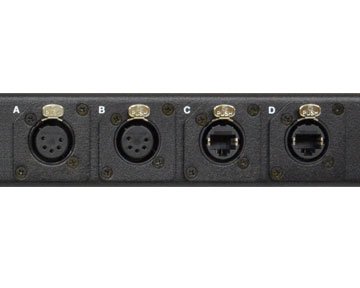

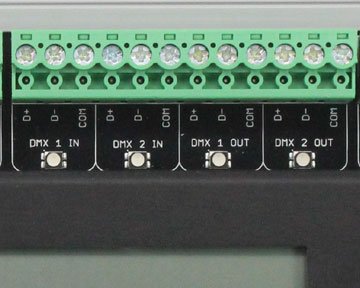

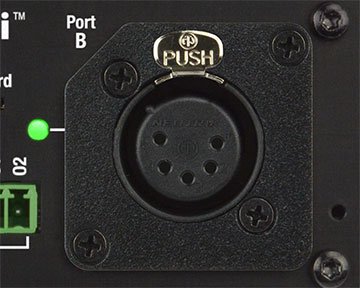

The rack-mounted CS-900 has four replaceable DMX module slots, and the miniature CS-920 has two replaceable DMX module slots, each of which can accept any of seven available DMX modules for input or output of DMX. The surface-mounted CS-940 has two DMX input ports and two DMX output ports that are available on the unit’s pluggable terminal block strips. The surface-mounted CS-950 has four bi-directional DMX ports that are available on the unit’s pluggable terminal block strips.
Specifications
| CS-900 | CS-920 | CS-940 | CS-950 | |
|---|---|---|---|---|
| DMX Ports | 4 | 2 | 4 | 4 |
| Bi-Directional Ports | 4 | 2 | – | 4 |
| Fixed Input Ports | – | – | 2 | – |
| Fixed Output Ports | – | – | 2 | – |
| Replacable DMX Modules | Yes | Yes | No | No |
 |
 |
 |
||
Indicators
| Description | CS-900/920/950 | CS-940 |
|---|---|---|
| Port Disabled |  Off |
Off |
| DMX Output (Active) |  Solid Green |
Solid Green |
| DMX Input (Active) |  Solid Blue |
Solid Green |
| DMX Input (No Input) |  Solid Magenta |
Off |
| Bad Universe |  Slowly Flashing Yellow |
Slowly Flashing Yellow |
| Bad Port Direction | n/a |  Quickly Flashing Red |
| Error Condition |  Solid Red |
Solid Red |
