Overview
The Indicator settings panel allows you to configure the default, or top-level, indictor settings for Buttons and Shared Controls.
Each indicator state is listed here with a colored circle displaying the state’s current configuration. Indicator states can have both a color and a flash pattern.

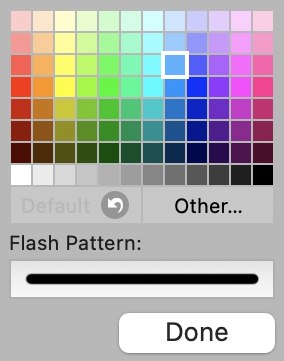

Select an indicator state to open the indicator palette and change its settings.
Select a color in the color palette to set a new indicator color, or select the flash pattern box to choose from a list of patterns.
The settings here are the global defaults, however, indicator settings can also be adjusted at the Station or Button level. The setting closest to the Button or Shared Control will apply. For example, if the On state is set to green in this settings panel but set to pink in a button or that button’s station settings, pink will be used.
