The CS-900 CueServer 2 Pro and the CS-920 CueServer 2 Mini use a unique field-replaceable DMX module system for allowing the DMX ports to be customized for each individual project’s needs.
The CS-900 ships with four blank plates covering the module slots. The CS-920 ships with two blank plates. Optional modules can be purchased and installed into each of these slots. Using CueServer Studio, each slot can be configured as a DMX input or output.
The following list shows the available modules:
| Module | Description | DMX Pinout |
|---|---|---|
 |

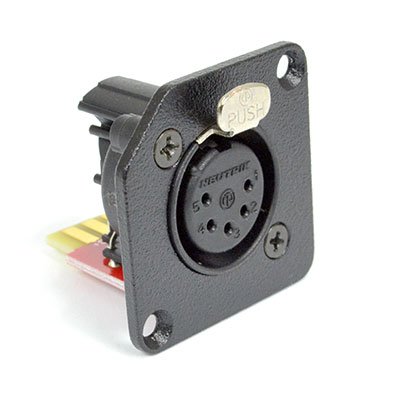

MOD-X5F 5-Pin Female XLR |
1 – Common 2 – Data - 3 – Data + 4 – NC 5 – NC |
 |

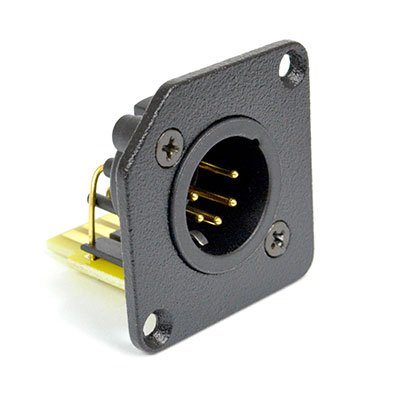

MOD-X5M 5-Pin Male XLR |
1 – Common 2 – Data - 3 – Data + 4 – NC 5 – NC |
 |

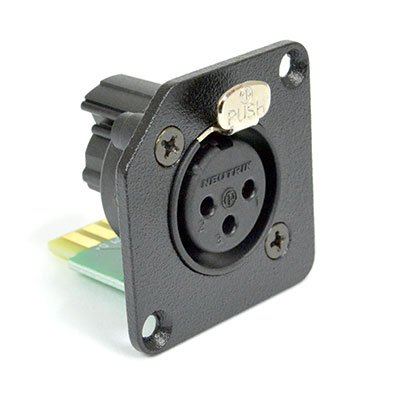

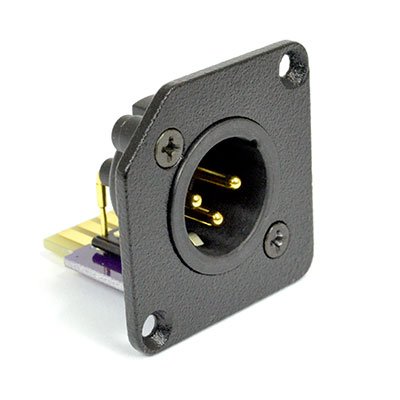

MOD-X3F 3-Pin Female XLR |
1 – Common 2 – Data - 3 – Data + |
 |
MOD-X5M 3-Pin Male XLR |
1 – Common 2 – Data - 3 – Data + |
 |

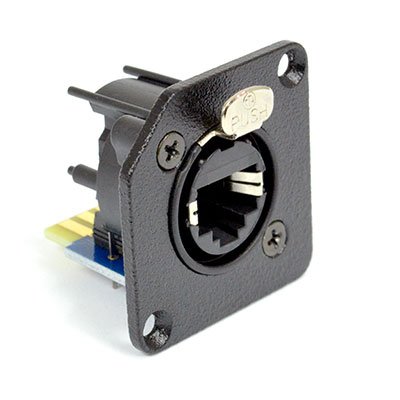

MOD-RJ45 Ethercon RJ45 |
1 – Data + (White/Orange) 2 – Data – (Orange) 3 – NC (White/Green) 4 – NC (Blue) 5 – NC (White/Blue) 6 – NC (Green) 7 – Common (White/Brown) 8 – Common (Brown) * Colors use T-568B Standard |
 |

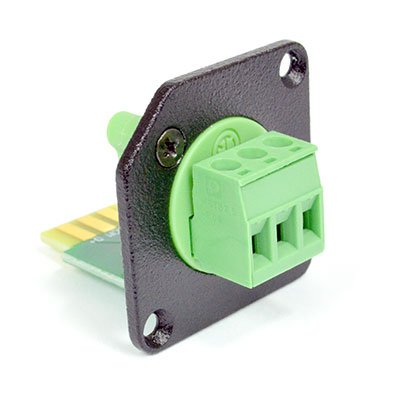

MOD-TB-ST Screw Terminals |
1 – Data - 2 – Data + 3 – Common |
 |

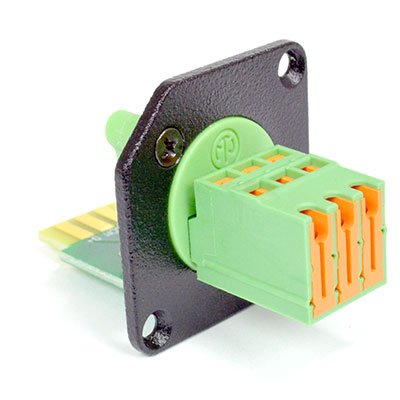

MOD-TB-IDC IDC Terminals |
1 – Data - 2 – Data + 3 – Common |
