Overview

Zones are used to separate different areas of a particular project. Zones are also “parent containers” for presets, meaning that any preset must be a member of a zone.

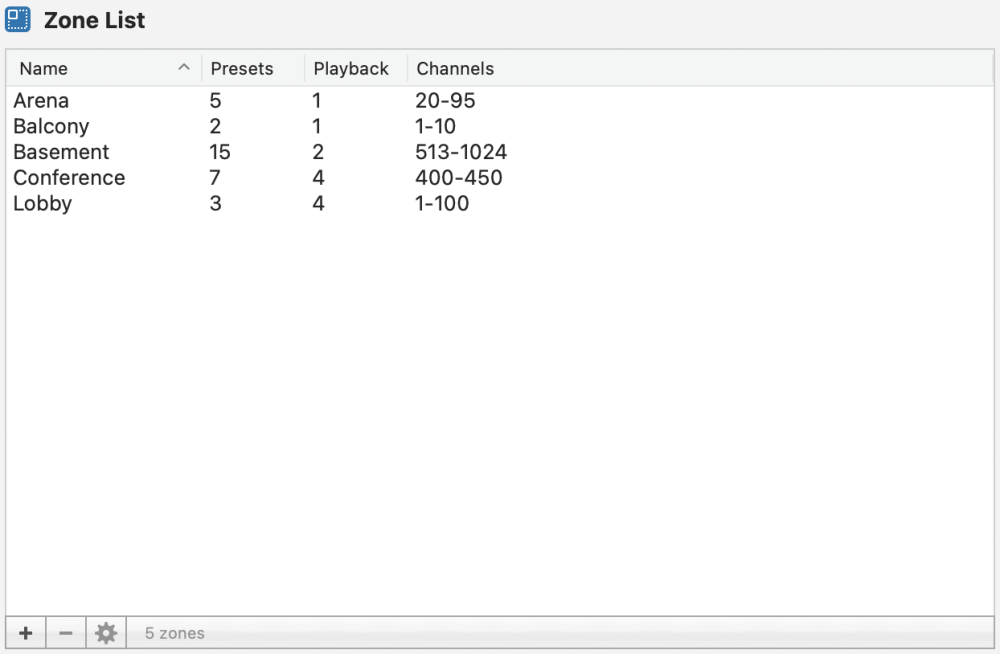

The Zones editor is where zones are created and removed from the project.

For information on using zones, see the Zone command.


Add a Zone

To add a zone, select the plus button ( ).

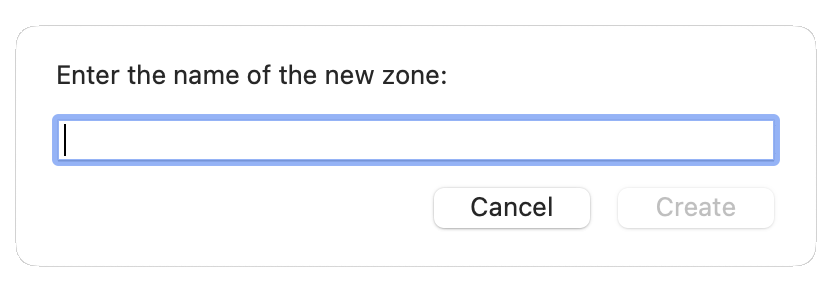

A prompt will appear asking for a Zone name.

Enter the desired Zone name and then click Create.


Edit a Zone

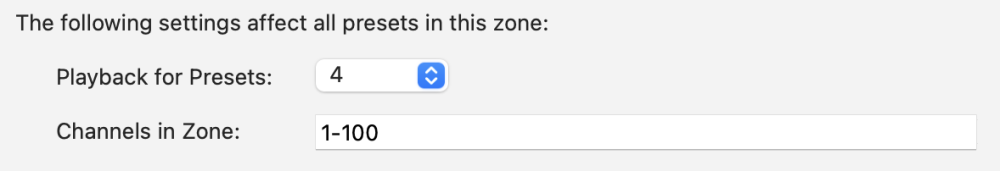

To edit a zone, double-click on the zone you want to modify and it will bring you to the zone settings.

The zone settings define what channels are in a zone and which playback the zone’s presets are executed in.

Click on Apply in the bottom right of the window to save any changes.


Remove a Zone

To remove a zone, select the zone you want to remove and then select the minus button ( ).

A popup will appear asking if you want to delete the zone. Click Delete.
