Memory Card

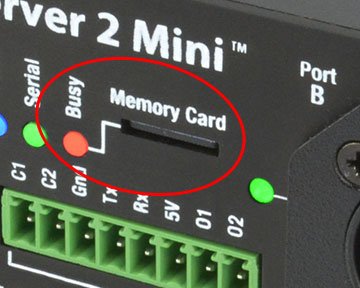

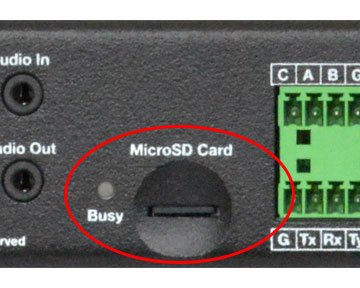

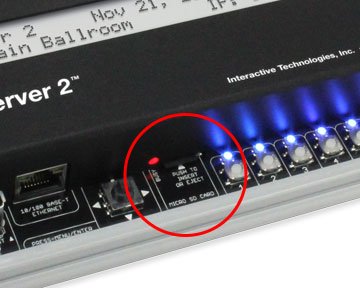

CueServer 2 uses a microSD memory card for storage of show files. Units ship from the factory with “Class 10” 16GB cards pre-installed.

At this time, CueServer 2 does not support hot-swapping cards while the system is running. This means that a card must be inserted when the device is turned on, and must remain inserted while it is running. To switch cards, please power the device off before changing cards.

!We have received reports of CueServer 2 show failures on units that have Class 4 or lower cards. All CueServer 2 units ship from the factory with Class 10 (or higher) cards installed. If you plan to use your own card, please make sure that it is Class 10 (or higher) as specified below.

Specifications

	CS-900	CS-920	CS-940/950
Card Type	microSD	microSD	microSD
File System Format	SDHC/FAT32	SDHC/FAT32	SDHC/FAT32
Speed Class	Class 10 (or higher) or UHS Class 1 (U1) (or higher)	Class 10 (or higher) or UHS Class 1 (U1) (or higher)	Class 10 (or higher) or UHS Class 1 (U1) (or higher)
Maximum Card Size	2TB	2TB	2TB

Indicators

Color & Pattern	Description
Off	No card inserted
Solid Red	Card is mounted and in use by system (do not remove)
Quickly Flashing Red	Card did not mount properly
